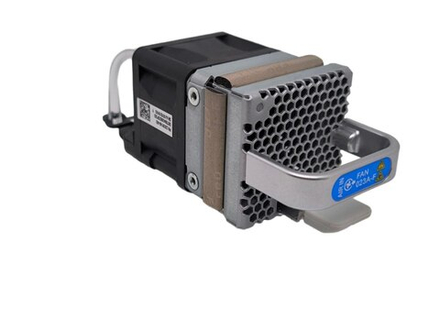

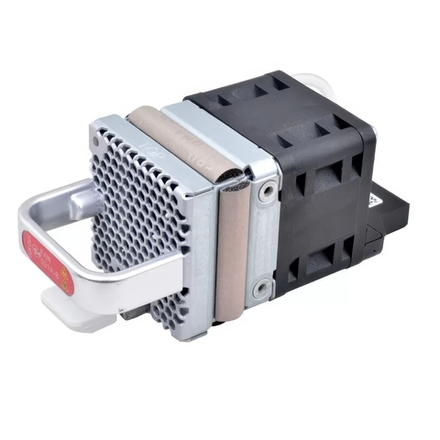

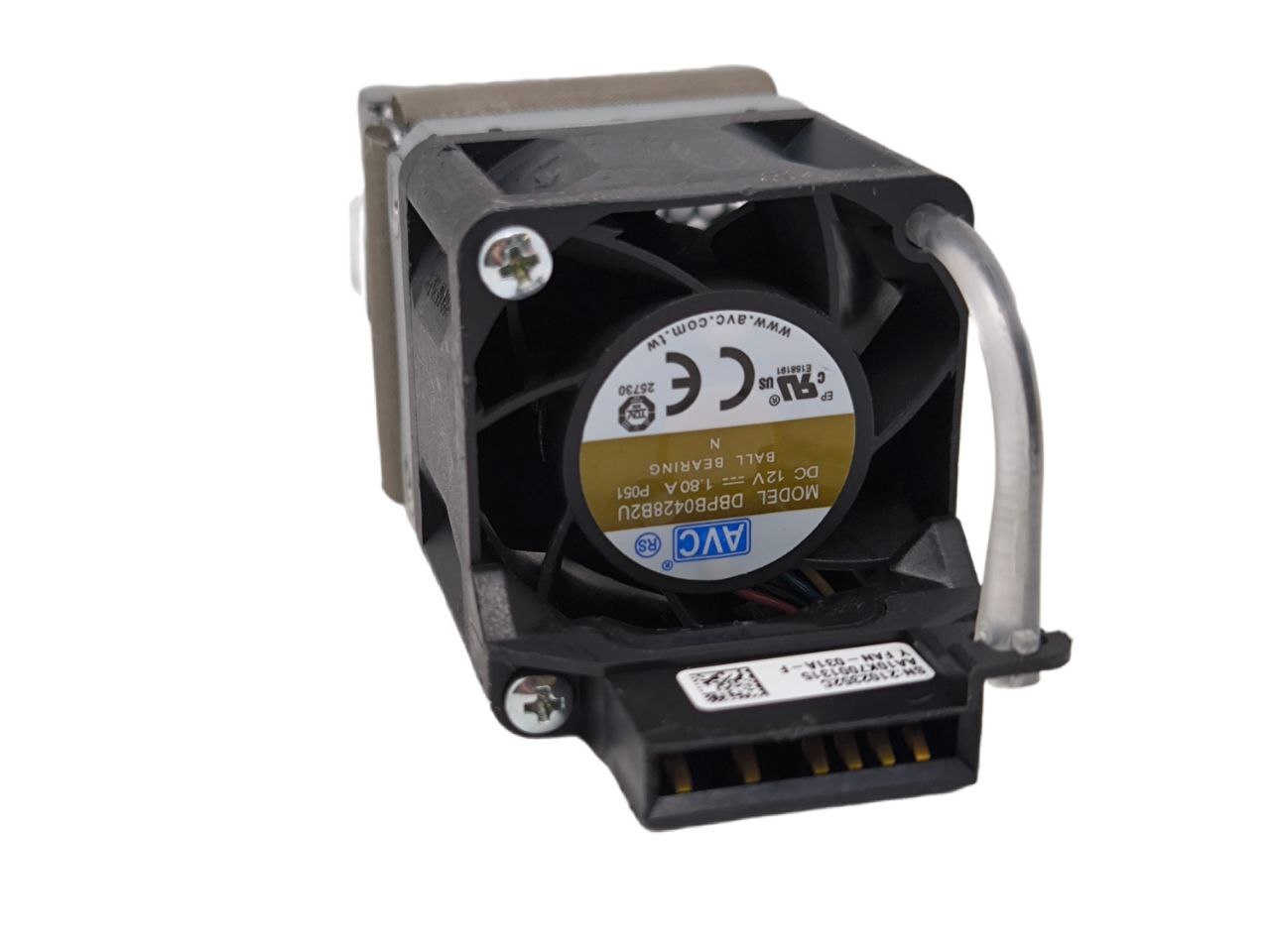

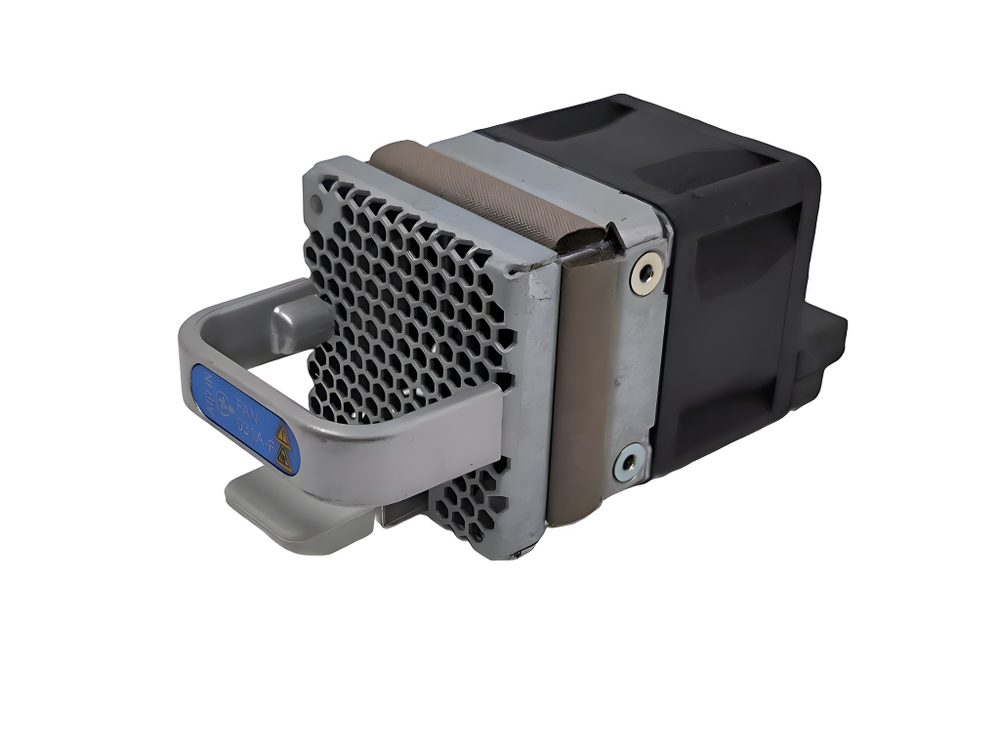

Модуль вентиляторов Huawei FAN-031A-F front-to-back airflow 02352CAA

Name: Модуль вентиляторов Huawei FAN-031A-F front-to-back airflow 02352CAA
SKU: FAN-031A-F

(0)

Добавить в сравнение

Купить в 1 клик

В корзине шт Перейти

Наличие на складах:

Склад СПБ – Есть 48 шт.

Заказ 35 дней – Предзаказ

Выбрать

Описание

Модуль вентиляторов Huawei FAN-031A-F (F,FAN panel side intake) 02352CAA

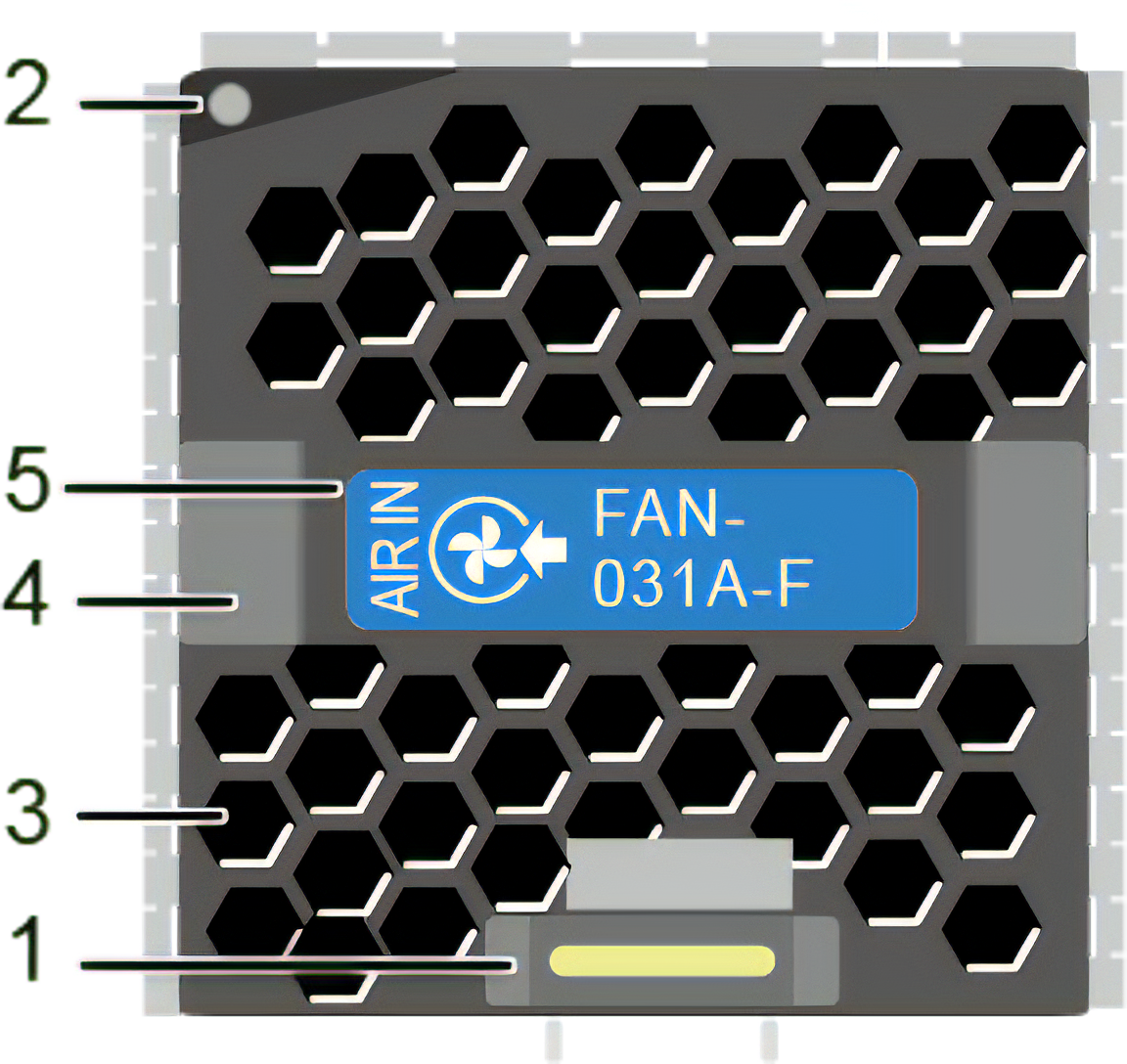

Figure 7-12 FAN-031A-F panel

1. Lock

2. Indicator

3: Airflow flag

: front-to-back airflow

4. Fan air vent

5. Handle

Table 7-17 Indicator description

Indicator	Color	Description
STAT: running status indicator	-	Off: The fan module is not running.
	Green	Slow blinking: The fan module is working properly and communicating normally with the system. Fast blinking: The fan module is working properly but has not established communication with the system.
	Red	Steady on: The fan module has a hardware fault and must be replaced. Blinking: An alarm has been generated, and you need to handle it accordingly. Common causes of this alarm include short circuits, fan blades blocked, and fault of the fan module.

Table 8-11 Mappings between FAN-023A-B and product models

Product	Product Model	First Supported Version
S5731-S	S5731-S24P4X (02353AHX)	V200R019C00
S5731-S	S5731-S24P4X (02353AHX-001)	V200R020C10
S5731-S	S5731-S24P4X (02353AHX-003)	V200R021C10SPC600
S5731-S	S5731-S24T4X (02353AHU)	V200R019C00
S5731-S	S5731-S24T4X (02353AHU-001)	V200R020C10
S5731-S	S5731-S48P4X (02353AJH)	V200R019C00
S5731-S	S5731-S48P4X (02353AJH-001)	V200R020C10
S5731-S	S5731-S48P4X (02353AJH-003)	V200R021C10SPC600
S5731-S	S5731-S48T4X (02353AJB)	V200R019C00
S5731-S	S5731-S48T4X (02353AJB-003)	V200R020C10
S5731S-S	S5731S-S24P4X-A (02353AHY)	V200R019C00
S5731S-S	S5731S-S24P4X-A (02353AHY-001)	V200R020C10
S5731S-S	S5731S-S24P4X-A (02353AHY-003)	V200R021C10SPC600
S5731S-S	S5731S-S24T4X-A (02353AHV)	V200R019C00
S5731S-S	S5731S-S24T4X-A (02353AHV-001)	V200R020C10
S5731S-S	S5731S-S48P4X-A (02353AJJ)	V200R019C00
S5731S-S	S5731S-S48P4X-A (02353AJJ-001)	V200R020C10
S5731S-S	S5731S-S48P4X-A (02353AJJ-003)	V200R021C10SPC600
S5731S-S	S5731S-S48T4X-A (02353AJC)	V200R019C00
S5731S-S	S5731S-S48T4X-A (02353AJC-003)	V200R020C10
S5731-H	S5731-H24HB4XZ (02354QXD)	V200R021C10SPC500
S5731-H	S5731-H24HB4XZ (02354QXD-001)	V200R021C10SPC600
S5731-H	S5731-H24P4XC (02352QPV)	V200R013C02
S5731-H	S5731-H24P4XC (02352QPV-001)	V200R020C10
S5731-H	S5731-H24P4XC (02352QPV-003)	V200R021C10SPC600
S5731-H	S5731-H24T4XC (02352QPP)	V200R013C02
S5731-H	S5731-H24T4XC (02352QPP-001)	V200R020C10
S5731-H	S5731-H24T4XC (02352QPP-005)	V200R021C10SPC600
S5731-H	S5731-H48HB4XZ (02354QXB)	V200R021C10SPC500
S5731-H	S5731-H48HB4XZ (02354QXB-001)	V200R021C10SPC600
S5731-H	S5731-H48P4XC (02352SVD)	V200R013C02
S5731-H	S5731-H48P4XC (02352SVD-001)	V200R020C10
S5731-H	S5731-H48P4XC (02352SVD-003)	V200R021C10SPC600
S5731-H	S5731-H48T4XC (02352QPT)	V200R013C02
S5731-H	S5731-H48T4XC (02352QPT-003)	V200R020C10
S5731-H	S5731-H48T4XC (02352QPT-007)	V200R021C10SPC600
S5731S-H	S5731S-H24HB4XZ-A (02354QXE)	V200R021C10SPC500
S5731S-H	S5731S-H24HB4XZ-A (02354QXE-001)	V200R021C10SPC600
S5731S-H	S5731S-H24T4S-A (02353DJE)	V200R019C00
S5731S-H	S5731S-H24T4S-A (02353DJE-001)	V200R020C10
S5731S-H	S5731S-H24T4S-A (02353DJE-003)	V200R021C10SPC600
S5731S-H	S5731S-H24T4X-A (02353HVH)	V200R019C10
S5731S-H	S5731S-H24T4X-A (02353HVH-001)	V200R020C10
S5731S-H	S5731S-H24T4X-A (02353HVH-003)	V200R021C10SPC600
S5731S-H	S5731S-H24T4XC-A (02352YRG)	V200R019C00
S5731S-H	S5731S-H24T4XC-A (02352YRG-001)	V200R020C10
S5731S-H	S5731S-H24T4XC-A (02352YRG-003)	V200R021C10SPC600
S5731S-H	S5731S-H48HB4XZ-A (02354QXC)	V200R021C10SPC500
S5731S-H	S5731S-H48HB4XZ-A (02354QXC-001)	V200R021C10SPC600
S5731S-H	S5731S-H48T4S-A (02353DJG)	V200R019C00
S5731S-H	S5731S-H48T4S-A (02353DJG-003)	V200R020C10
S5731S-H	S5731S-H48T4S-A (02353DJG-005)	V200R021C10SPC600
S5731S-H	S5731S-H48T4X-A (02353HVJ)	V200R019C10
S5731S-H	S5731S-H48T4X-A (02353HVJ-003)	V200R020C10
S5731S-H	S5731S-H48T4X-A (02353HVJ-005)	V200R021C10SPC600
S5731S-H	S5731S-H48T4XC-A (02352YRF)	V200R019C00
S5731S-H	S5731S-H48T4XC-A (02352YRF-003)	V200R020C10
S5731S-H	S5731S-H48T4XC-A (02352YRF-005)	V200R021C10SPC600
S5735S-H	S5735S-H24S4XC-A (98011041)	V200R021C01
S5735S-H	S5735S-H24T4XC-A (98011025)	V200R020C00
S5735S-H	S5735S-H24U4XC-A (98011033)	V200R020C00
S5735S-H	S5735S-H48T4XC-A (98011029)	V200R020C00
S5735S-H	S5735S-H48U4XC-A (98011037)	V200R020C00
S5736-S	S5736-S24S4XC (98011038)	V200R021C01
S5736-S	S5736-S24T4XC (98011022)	V200R020C00
S5736-S	S5736-S24U4XC (98011030)	V200R020C00
S5736-S	S5736-S24UM4XC (98011020)	V200R020C00
S5736-S	S5736-S24UM4XC (98011020-001)	V200R020C00
S5736-S	S5736-S24UM4XC (98011020-004)	V200R020C00
S5736-S	S5736-S48S4XC (98011042)	V200R021C01
S5736-S	S5736-S48T4XC (98011026)	V200R020C00
S5736-S	S5736-S48U4XC (98011034)	V200R020C00

Panel

Table 8-14 Technical specifications of the FAN-023A-F

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	40 mm x 40 mm x 100.3 mm (1.57 in. x 1.57 in. x 3.95 in.)
Weight without packaging [kg(lb)]	0.1 kg (0.22 lb)
Number of fans	1
Maximum power consumption [W]	7.2 W
Maximum heat dissipation [BTU/hour]	24.57 BTU/hour
Maximum fan speed [RPM]	18500 ± 10 %
Maximum airflow [CFM]	23 CFM
Airflow direction	Air exhausted from the panel side of the fan tray
