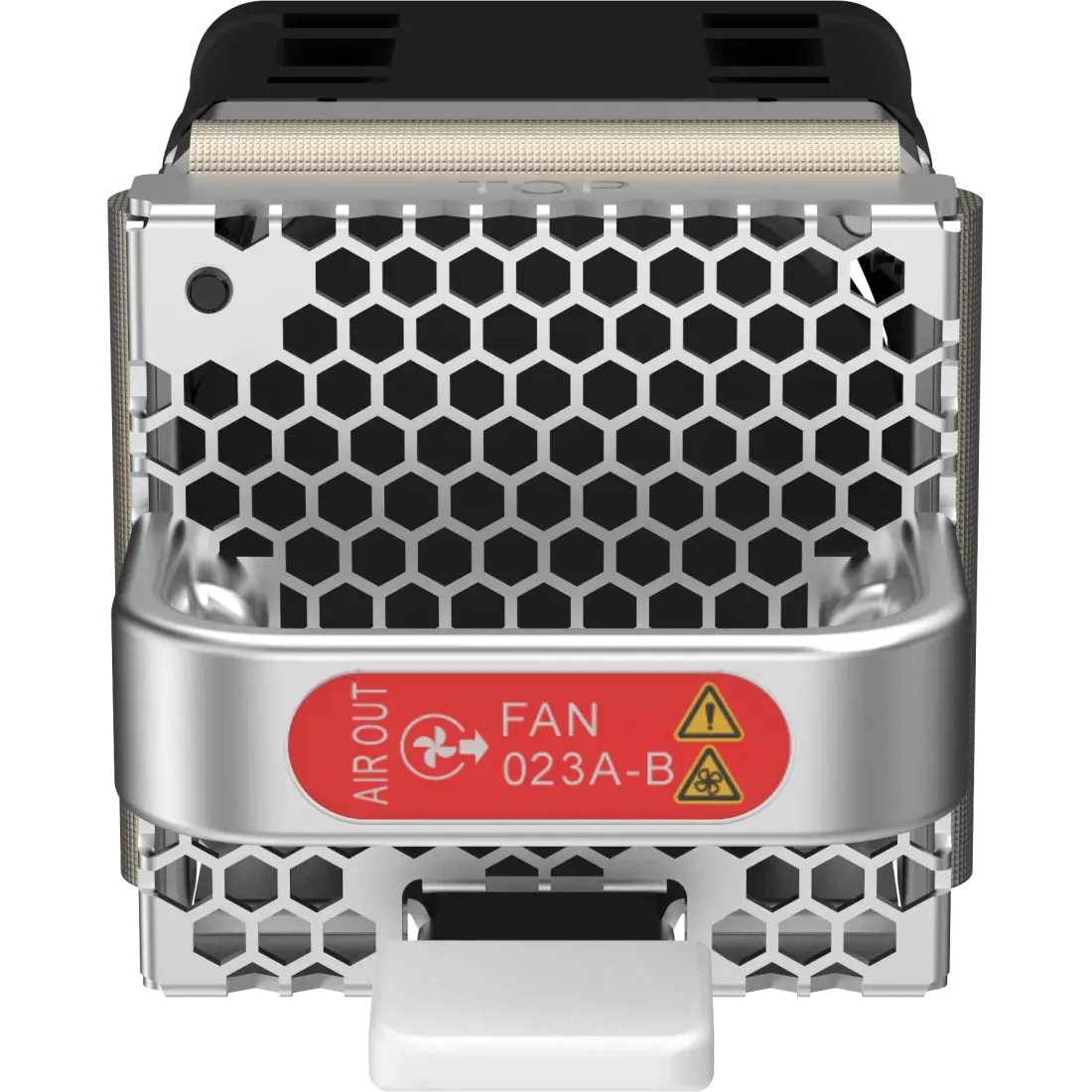

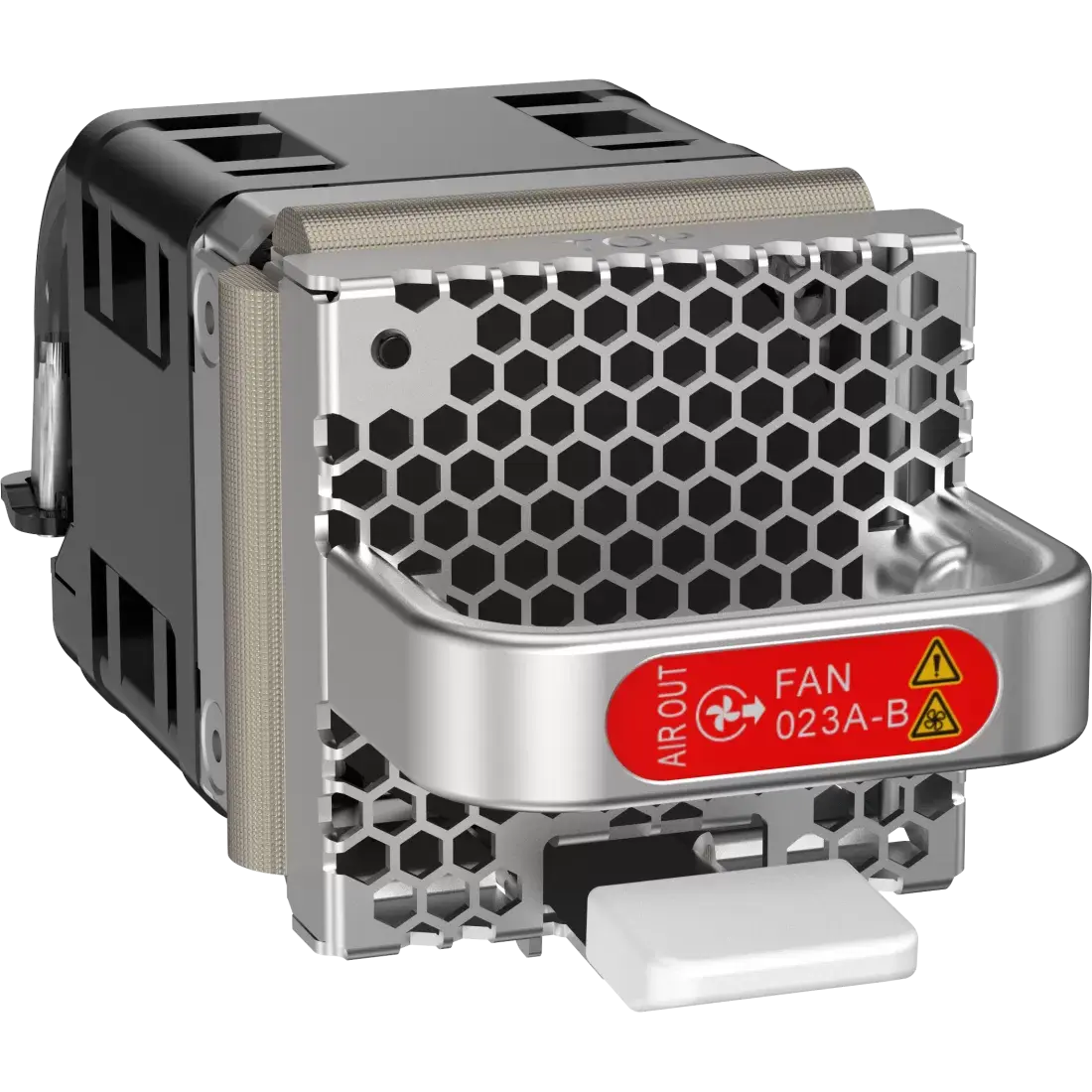

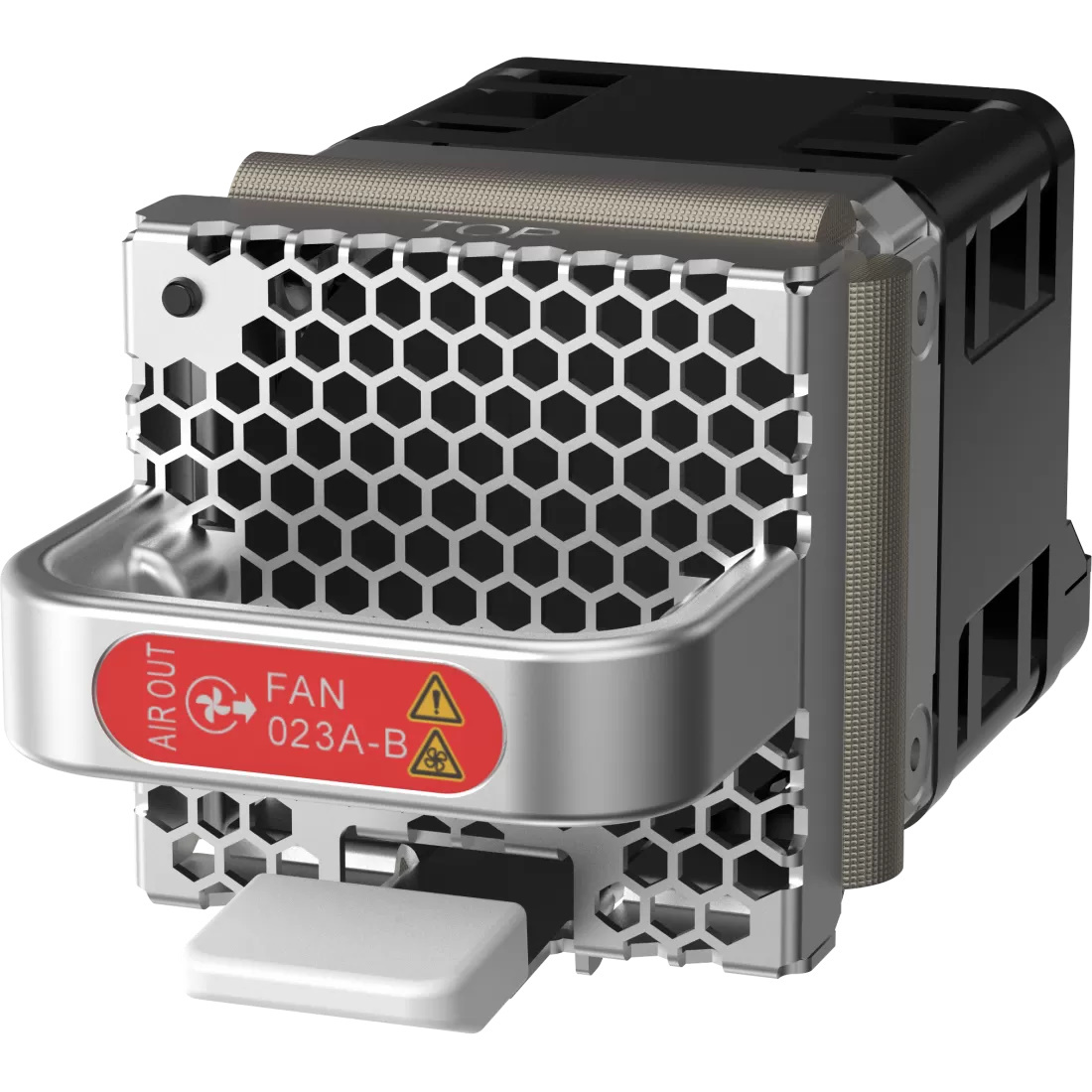

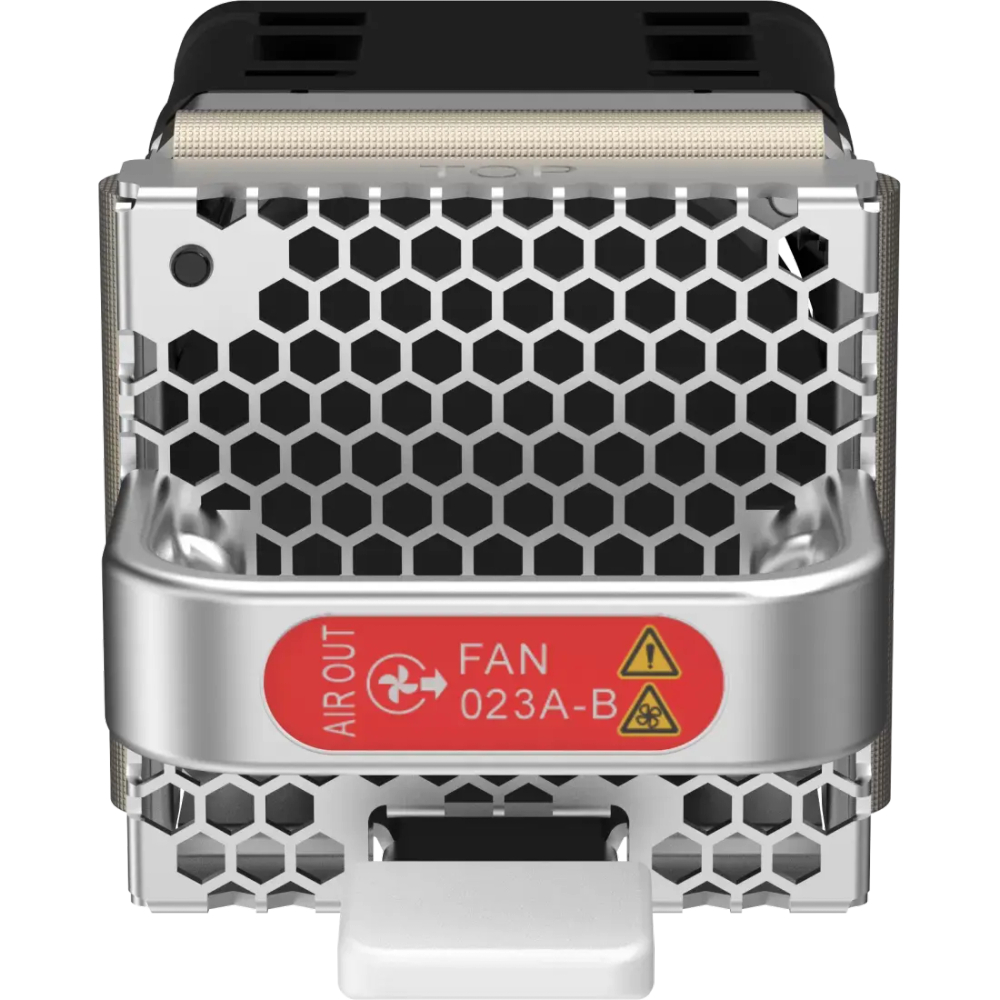

Модуль вентиляторов Huawei FAN-023A-B (B,FAN panel side exhaust) 02312DKW
|
1. Lock |
2. Indicator |
3. Airflow flag (air out) |
4. Fan air vent |
5. Handle |
Table 8-12 Indicators on the FAN-023A-B
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| - | Fan status indicator | - | Off | The fan module is not running. |
| Green | Steady on | The fan module is starting. | ||
| Green | Slow blinking | The fan module is working properly. | ||
| Red | Steady on | The fan module has a hardware fault and must be replaced. Common causes include short circuits, fan blades blocked, and faults of the fan module. |
Table 8-11 Mappings between FAN-023A-B and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| S5731-S | S5731-S24P4X (02353AHX) | V200R019C00 |
| S5731-S | S5731-S24P4X (02353AHX-001) | V200R020C10 |
| S5731-S | S5731-S24P4X (02353AHX-003) | V200R021C10SPC600 |
| S5731-S | S5731-S24T4X (02353AHU) | V200R019C00 |
| S5731-S | S5731-S24T4X (02353AHU-001) | V200R020C10 |
| S5731-S | S5731-S48P4X (02353AJH) | V200R019C00 |
| S5731-S | S5731-S48P4X (02353AJH-001) | V200R020C10 |
| S5731-S | S5731-S48P4X (02353AJH-003) | V200R021C10SPC600 |
| S5731-S | S5731-S48T4X (02353AJB) | V200R019C00 |
| S5731-S | S5731-S48T4X (02353AJB-003) | V200R020C10 |
| S5731S-S | S5731S-S24P4X-A (02353AHY) | V200R019C00 |
| S5731S-S | S5731S-S24P4X-A (02353AHY-001) | V200R020C10 |
| S5731S-S | S5731S-S24P4X-A (02353AHY-003) | V200R021C10SPC600 |
| S5731S-S | S5731S-S24T4X-A (02353AHV) | V200R019C00 |
| S5731S-S | S5731S-S24T4X-A (02353AHV-001) | V200R020C10 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ) | V200R019C00 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ-001) | V200R020C10 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ-003) | V200R021C10SPC600 |
| S5731S-S | S5731S-S48T4X-A (02353AJC) | V200R019C00 |
| S5731S-S | S5731S-S48T4X-A (02353AJC-003) | V200R020C10 |
| S5731-H | S5731-H24HB4XZ (02354QXD) | V200R021C10SPC500 |
| S5731-H | S5731-H24HB4XZ (02354QXD-001) | V200R021C10SPC600 |
| S5731-H | S5731-H24P4XC (02352QPV) | V200R013C02 |
| S5731-H | S5731-H24P4XC (02352QPV-001) | V200R020C10 |
| S5731-H | S5731-H24P4XC (02352QPV-003) | V200R021C10SPC600 |
| S5731-H | S5731-H24T4XC (02352QPP) | V200R013C02 |
| S5731-H | S5731-H24T4XC (02352QPP-001) | V200R020C10 |
| S5731-H | S5731-H24T4XC (02352QPP-005) | V200R021C10SPC600 |
| S5731-H | S5731-H48HB4XZ (02354QXB) | V200R021C10SPC500 |
| S5731-H | S5731-H48HB4XZ (02354QXB-001) | V200R021C10SPC600 |
| S5731-H | S5731-H48P4XC (02352SVD) | V200R013C02 |
| S5731-H | S5731-H48P4XC (02352SVD-001) | V200R020C10 |
| S5731-H | S5731-H48P4XC (02352SVD-003) | V200R021C10SPC600 |
| S5731-H | S5731-H48T4XC (02352QPT) | V200R013C02 |
| S5731-H | S5731-H48T4XC (02352QPT-003) | V200R020C10 |
| S5731-H | S5731-H48T4XC (02352QPT-007) | V200R021C10SPC600 |
| S5731S-H | S5731S-H24HB4XZ-A (02354QXE) | V200R021C10SPC500 |
| S5731S-H | S5731S-H24HB4XZ-A (02354QXE-001) | V200R021C10SPC600 |
| S5731S-H | S5731S-H24T4S-A (02353DJE) | V200R019C00 |
| S5731S-H | S5731S-H24T4S-A (02353DJE-001) | V200R020C10 |
| S5731S-H | S5731S-H24T4S-A (02353DJE-003) | V200R021C10SPC600 |
| S5731S-H | S5731S-H24T4X-A (02353HVH) | V200R019C10 |
| S5731S-H | S5731S-H24T4X-A (02353HVH-001) | V200R020C10 |
| S5731S-H | S5731S-H24T4X-A (02353HVH-003) | V200R021C10SPC600 |
| S5731S-H | S5731S-H24T4XC-A (02352YRG) | V200R019C00 |
| S5731S-H | S5731S-H24T4XC-A (02352YRG-001) | V200R020C10 |
| S5731S-H | S5731S-H24T4XC-A (02352YRG-003) | V200R021C10SPC600 |
| S5731S-H | S5731S-H48HB4XZ-A (02354QXC) | V200R021C10SPC500 |
| S5731S-H | S5731S-H48HB4XZ-A (02354QXC-001) | V200R021C10SPC600 |
| S5731S-H | S5731S-H48T4S-A (02353DJG) | V200R019C00 |
| S5731S-H | S5731S-H48T4S-A (02353DJG-003) | V200R020C10 |
| S5731S-H | S5731S-H48T4S-A (02353DJG-005) | V200R021C10SPC600 |
| S5731S-H | S5731S-H48T4X-A (02353HVJ) | V200R019C10 |
| S5731S-H | S5731S-H48T4X-A (02353HVJ-003) | V200R020C10 |
| S5731S-H | S5731S-H48T4X-A (02353HVJ-005) | V200R021C10SPC600 |
| S5731S-H | S5731S-H48T4XC-A (02352YRF) | V200R019C00 |
| S5731S-H | S5731S-H48T4XC-A (02352YRF-003) | V200R020C10 |
| S5731S-H | S5731S-H48T4XC-A (02352YRF-005) | V200R021C10SPC600 |
| S5735S-H | S5735S-H24S4XC-A (98011041) | V200R021C01 |
| S5735S-H | S5735S-H24T4XC-A (98011025) | V200R020C00 |
| S5735S-H | S5735S-H24U4XC-A (98011033) | V200R020C00 |
| S5735S-H | S5735S-H48T4XC-A (98011029) | V200R020C00 |
| S5735S-H | S5735S-H48U4XC-A (98011037) | V200R020C00 |
| S5736-S | S5736-S24S4XC (98011038) | V200R021C01 |
| S5736-S | S5736-S24T4XC (98011022) | V200R020C00 |
| S5736-S | S5736-S24U4XC (98011030) | V200R020C00 |
| S5736-S | S5736-S24UM4XC (98011020) | V200R020C00 |
| S5736-S | S5736-S24UM4XC (98011020-001) | V200R020C00 |
| S5736-S | S5736-S24UM4XC (98011020-004) | V200R020C00 |
| S5736-S | S5736-S48S4XC (98011042) | V200R021C01 |
| S5736-S | S5736-S48T4XC (98011026) | V200R020C00 |
| S5736-S | S5736-S48U4XC (98011034) | V200R020C00 |
Panel
Table 8-14 Technical specifications of the FAN-023A-B
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 40 mm x 100.3 mm (1.57 in. x 1.57 in. x 3.95 in.) |
| Weight without packaging [kg(lb)] | 0.1 kg (0.22 lb) |
| Number of fans | 1 |
| Maximum power consumption [W] | 7.2 W |
| Maximum heat dissipation [BTU/hour] | 24.57 BTU/hour |
| Maximum fan speed [RPM] | 18500 ± 10 % |
| Maximum airflow [CFM] | 23 CFM |
| Airflow direction | Air exhausted from the panel side of the fan tray |
Характеристики
Бренд
HUAWEI
Тип
Вентилятор
MPN
02312DKW
