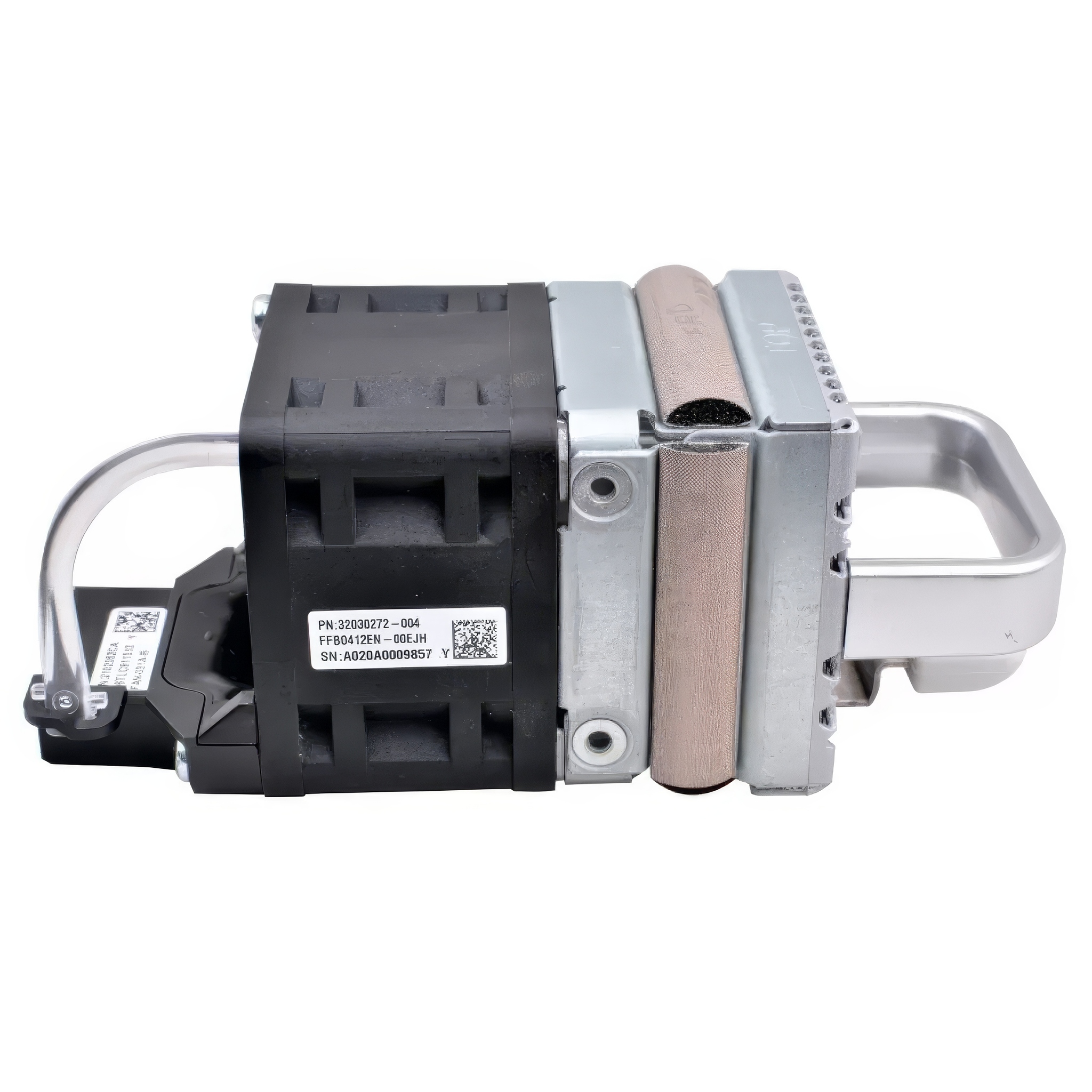

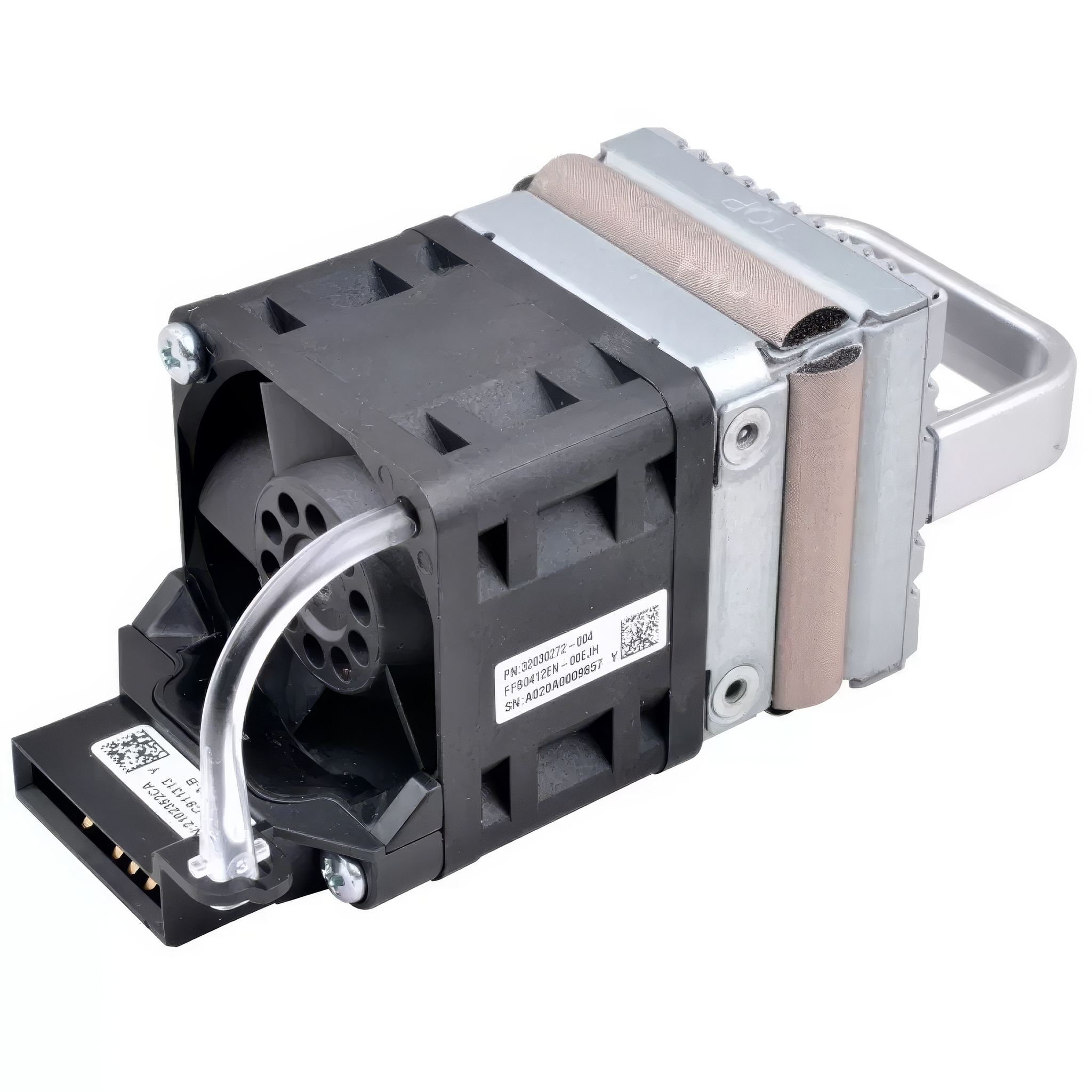

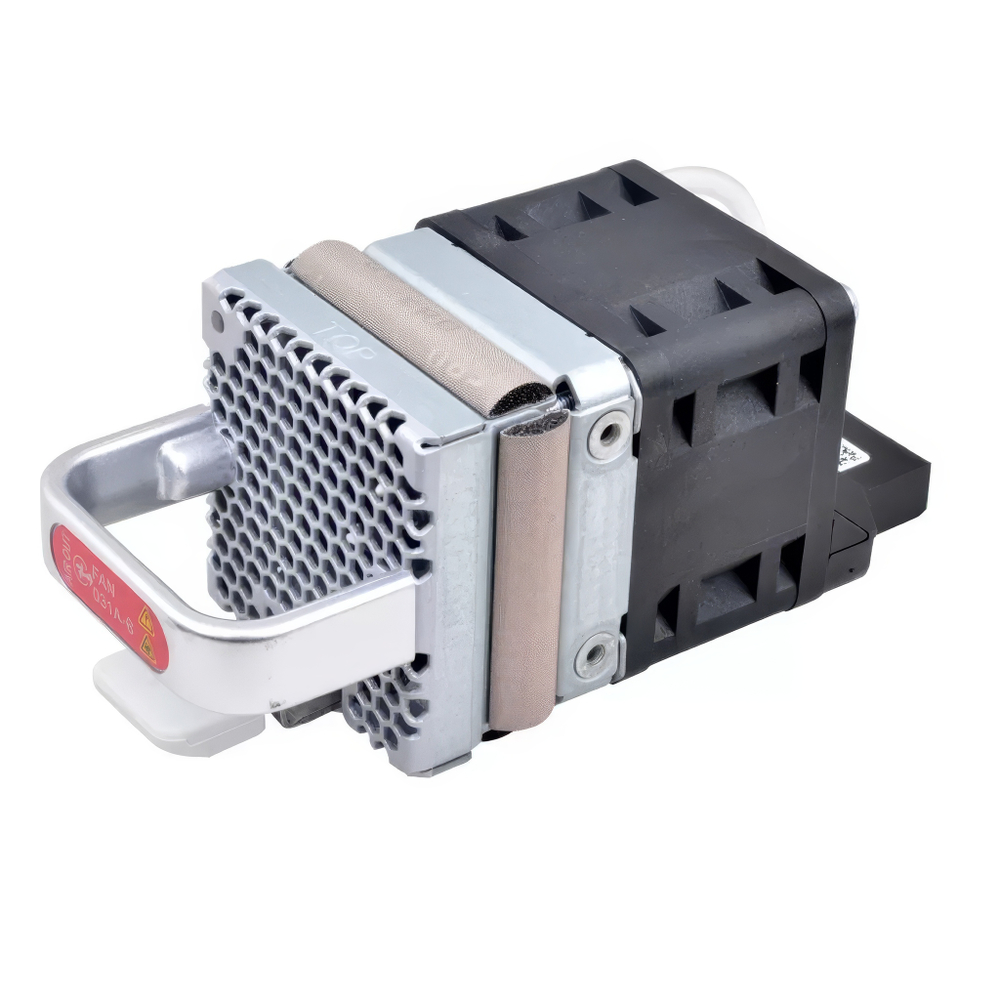

Модуль вентиляторов Huawei FAN-031A-B (B,FAN panel side exhaust) 02352CAB

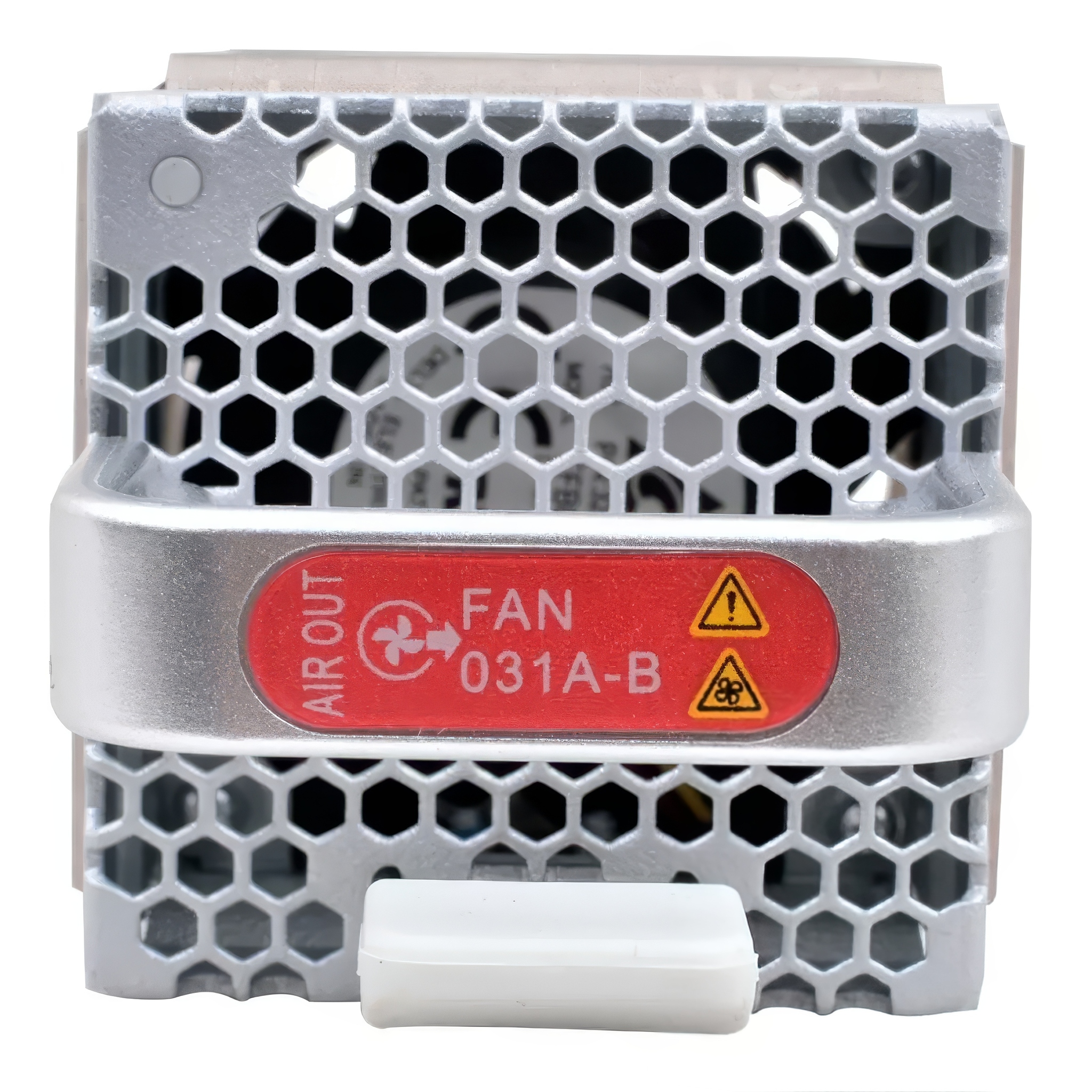

Panel
Figure 8-10 Panel of the FAN-031A-B
1. Lock
2. Indicator
3. Airflow flag (air out)
4. Fan air vent
5. Handle
Table 8-16 Mappings between FAN-031A-B and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| S5732-H | S5732-H24S6Q (02353AJS) | V200R019C00 |
| S5732-H | S5732-H24S6Q (02353AJS-001) | V200R020C10 |
| S5732-H | S5732-H24S6Q (02353AJS-003) | V200R021C10SPC500 |
| S5732-H | S5732-H24S6Q (02353AJS-004) | V200R021C10SPC600 |
| S5732-H | S5732-H24S6Q (02353AJS-005) | V200R021C10SPC600 |
| S5732-H | S5732-H24UM2CC (02353HUC) | V200R019C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353HUC-003) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY) | V200R019C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-001) | V200R019C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-004) | V200R019C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-010) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-011) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-014) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-015) | V200R021C10SPC600 |
| S5732-H | S5732-H24UM2CC (02353SJY-016) | V200R021C10SPC600 |
| S5732-H | S5732-H24UM2CC (02353SJY-019) | V200R021C10SPC600 |
| S5732-H | S5732-H24UM2CC (02353SJY-020) | V200R022C00 |
| S5732-H | S5732-H24UM2CC (02353SJY-021) | V200R022C00 |
| S5732-H | S5732-H24UM2CC (02353SJY-024) | V200R022C00 |
| S5732-H | S5732-H48S6Q (02353AJU) | V200R019C00 |
| S5732-H | S5732-H48S6Q (02353AJU-001) | V200R020C10 |
| S5732-H | S5732-H48S6Q (02353AJU-003) | V200R021C10SPC500 |
| S5732-H | S5732-H48S6Q (02353AJU-004) | V200R021C10SPC600 |
| S5732-H | S5732-H48UM2CC (02353HUB) | V200R019C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353HUB-002) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT) | V200R019C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-001) | V200R019C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-003) | V200R019C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-004) | V200R019C10 |
| S5732-H | S5732-H48UM2CC (02353SJT-010) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-011) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-013) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-014) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-015) | V200R021C10SPC600 |
| S5732-H | S5732-H48UM2CC (02353SJT-016) | V200R021C10SPC600 |
| S5732-H | S5732-H48UM2CC (02353SJT-018) | V200R021C10SPC600 |
| S5732-H | S5732-H48UM2CC (02353SJT-019) | V200R021C10SPC600 |
| S5732-H | S5732-H48UM2CC (02353SJT-020) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-021) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-023) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-024) | V200R022C00 |
| S5732-H | S5732-H48XUM2CC (02353MLH) | V200R019C20 |
| S5732-H | S5732-H48XUM2CC (02353MLH-001) | V200R021C10SPC500 |
| S5732-H | S5732-H48XUM2CC (02353MLH-002) | V200R023C10 |
Table 8-17 Indicators on the FAN-031A-B
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| - | Fan status indicator | - | Off | The fan module is not running. |
| Green | Steady on | The fan module is starting. | ||
| Green | Slow blinking | The fan module is working properly. | ||
| Red | Steady on | The fan module has a hardware fault and must be replaced. Common causes include short circuits, fan blades blocked, and faults of the fan module. |
Functions and Features
Table 8-18 Functions and features of the FAN-031A-B
| Functions and Features | Description |
|---|---|
| Basic function | The fan module has only one fan to cool the chassis. |
| Hot swapping | Supported |
Technical Specifications
Table 8-19 Technical specifications of the FAN-031A-B
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 40 mm x 100.3 mm (1.57 in. x 1.57 in. x 3.95 in.) |
| Weight without packaging [kg(lb)] | 0.1 kg (0.22 lb) |
| Number of fans | 1 |
| Maximum power consumption [W] | 21.6 W |
| Maximum heat dissipation [BTU/hour] | 73.7 BTU/hour |
| Maximum fan speed [RPM] | 24500 ± 10 % |
| Maximum airflow [CFM] | 31 CFM |
| Airflow direction | Air exhausted from the panel side of the fan tray |
Характеристики
Бренд
HUAWEI
Тип
Вентилятор
MPN
FAN-031A-B,
02352CAB
