Система хранения данных - в наличии

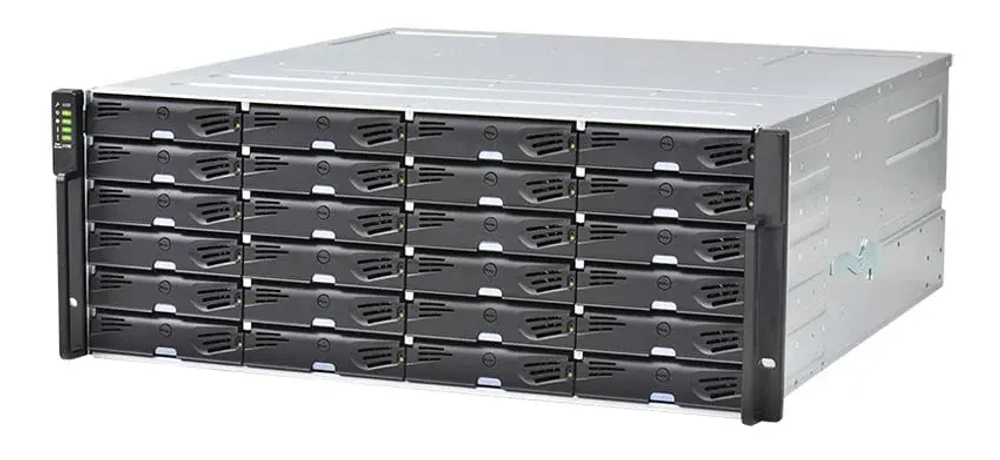

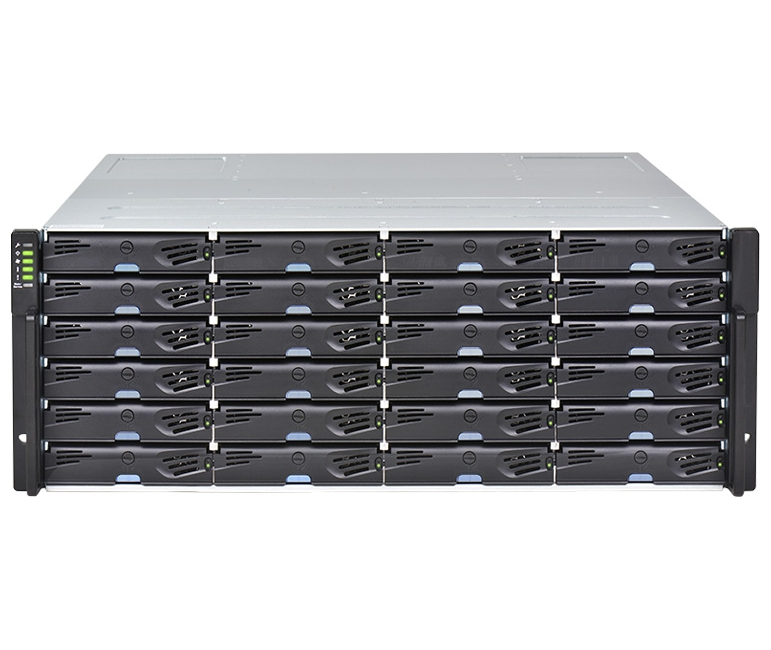

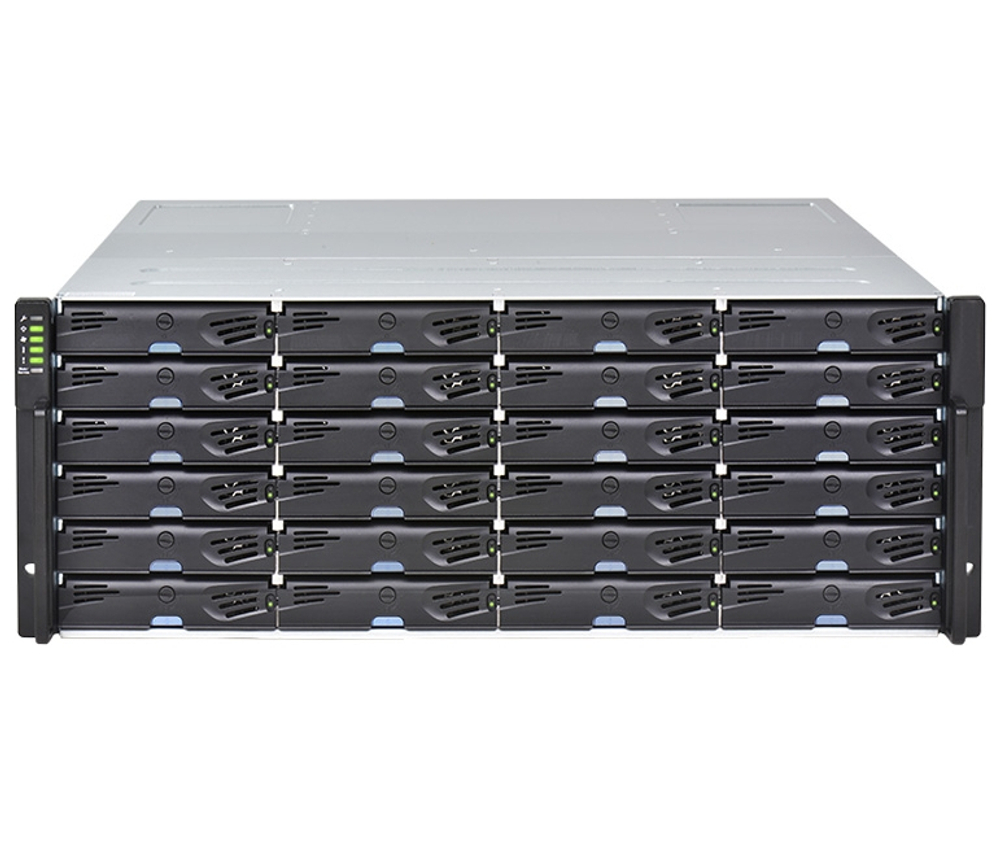

Платформа СХД Infortrend EonStor DS2024R2C000B-8U32 (24x3.5, 4U, Dual Redundant Controller incl: 2x2GB, 8x1GbE iSCSI ports, 2xSAS3 ports, 2 FREE host board slots, 2x(SuperCap.+FlashModule, PSU 460W+FAN), Rackmount kit
В состав входят два модуля FC:
Плата RFC16G0HIO4-0010 4x16Gb/s FC
Поддерживаемые диски:
• 2.5" SAS SSD
• 2.5" 12Gb/s SAS 10,000 or 15,000 RPM HDD
• 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
• 2.5" SATA SSD、3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
Max. SSD Cache Pool (Block Level) - 2TB
Onboard 1GbE Ports (RJ45) - 8
Onboard SAS Expansion Ports - 2
Max. Host Board Slots - 2
Expansion Enclosures (JBODs) - JB 3012, JB 3016, JB 3024B, JB 3060L
Размеры:
• 4U 24-bay: 449 x 174.4 x 500 mm
Блок питания: 460W x 2 (80 PLUS Bronze)
RAID OPTIONS : RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60
Supported OS: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, macOS X, VMware, Citrix XenServer
OpenStack Cinder
Max. Logical Drive Capacity 512TB
Stripe Size : 16KB, 32KB, 64KB, 128KB, 256KB, 512KB, 1024KB (per logical drive)
Max. Partition Size 512TB
Max. Partition Number : 2048 (per logical volume) / 1024 (per system)
Хранилище протестировано и готово к продаже
