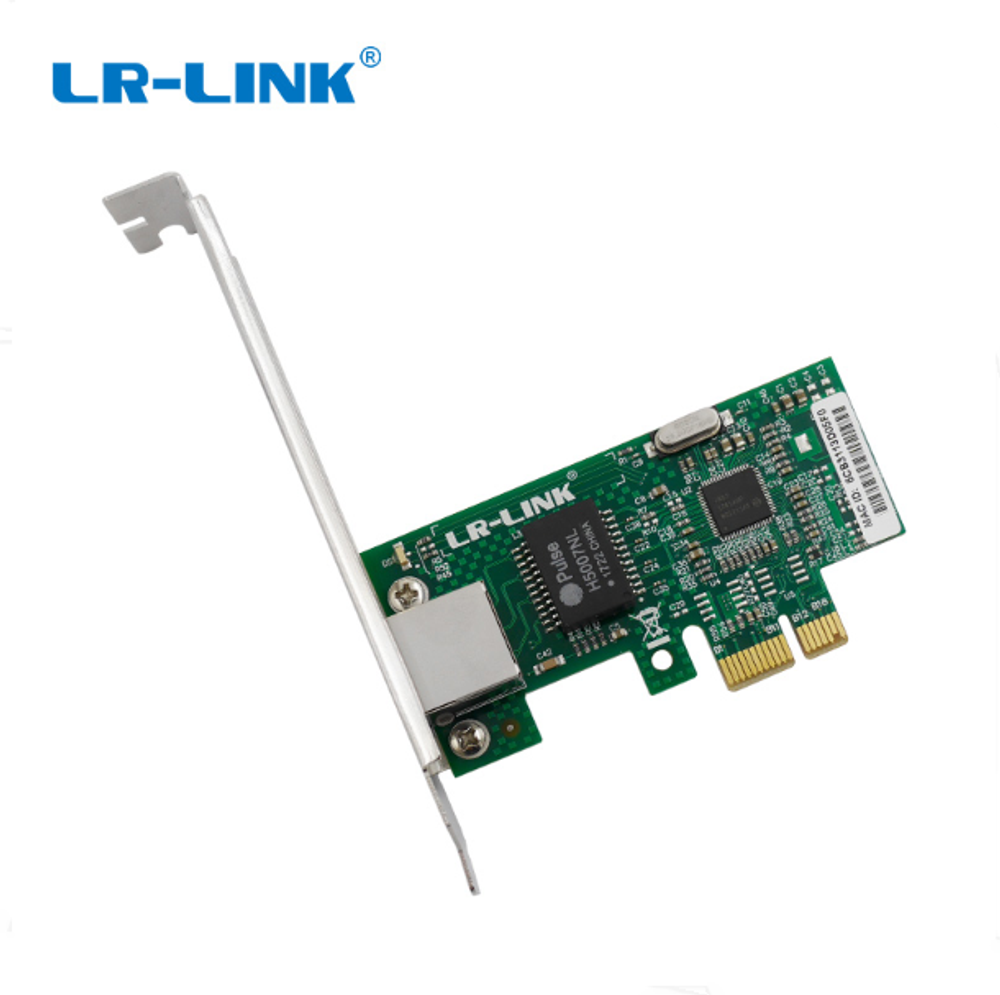

PCIe x1 10/100/1000Mbps RJ45 Network Interface Card
Overview Specifications Ordering Driver Relative Products
Controller Intel I211
Transmission rate per port 10/100/1000Mbps
Network Standard Physical Layer Interfaces
1000BASE-T:Cat 5eor higherup to 100m
100BASE-Tx:Cat5/5e/6or higherup to 100m
10BASE-T: Cat3/4/5/5e/6or higherup to 100m
Jumbo Frame Support Up to 9.5 KB
Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)
Network Virtualization
LED Indicators
1000Mbps/s:Yellow Link and Green Ack,
100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate
Operating System Support
Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2
Windows 7 / 8 / 8.1 / 10
Linux Stable Kernel version 2.6.x / 3.x / 4.x or later
Linux SLES 10 / 11 or later
VMvare ESX/ESXi 5.x/6.x or later
