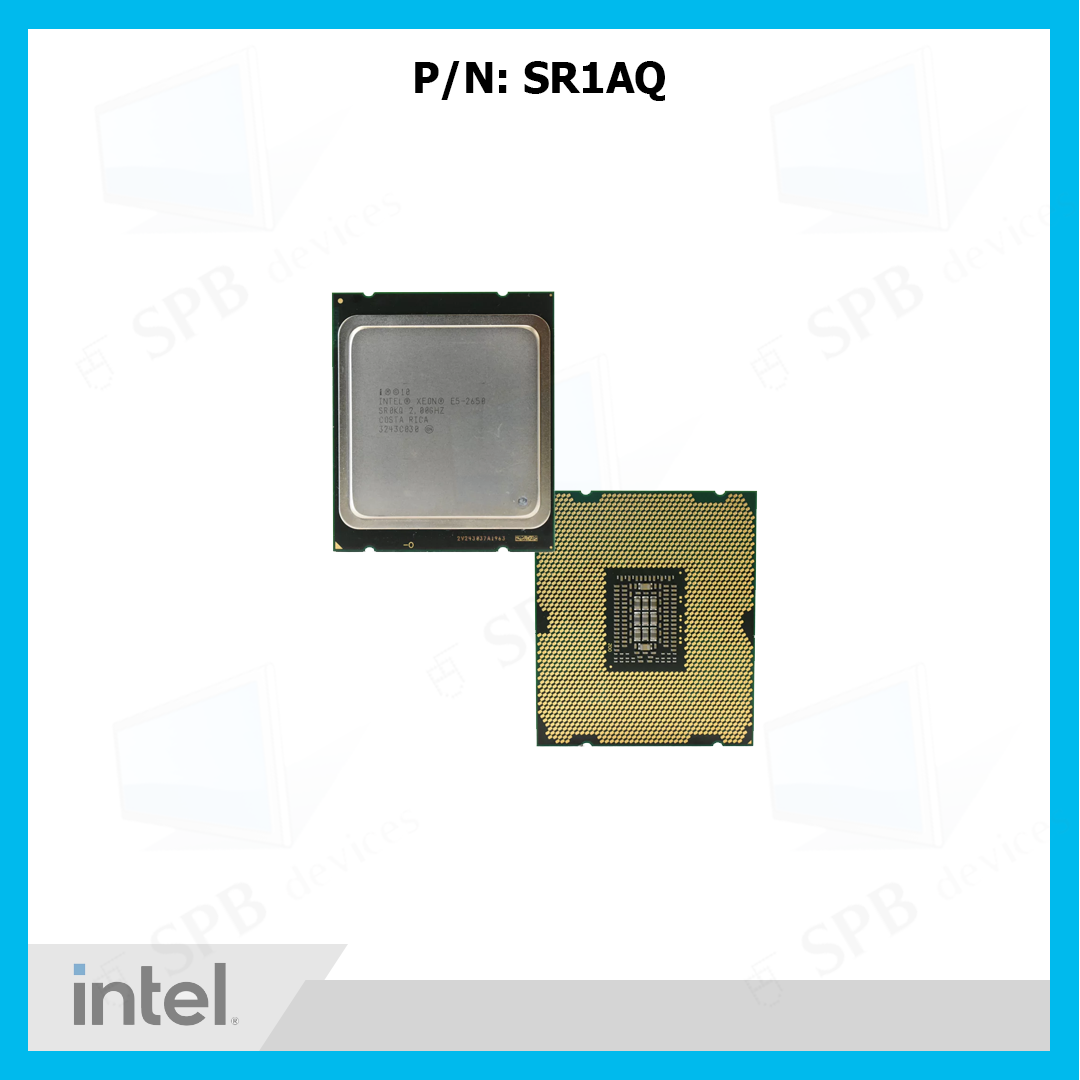

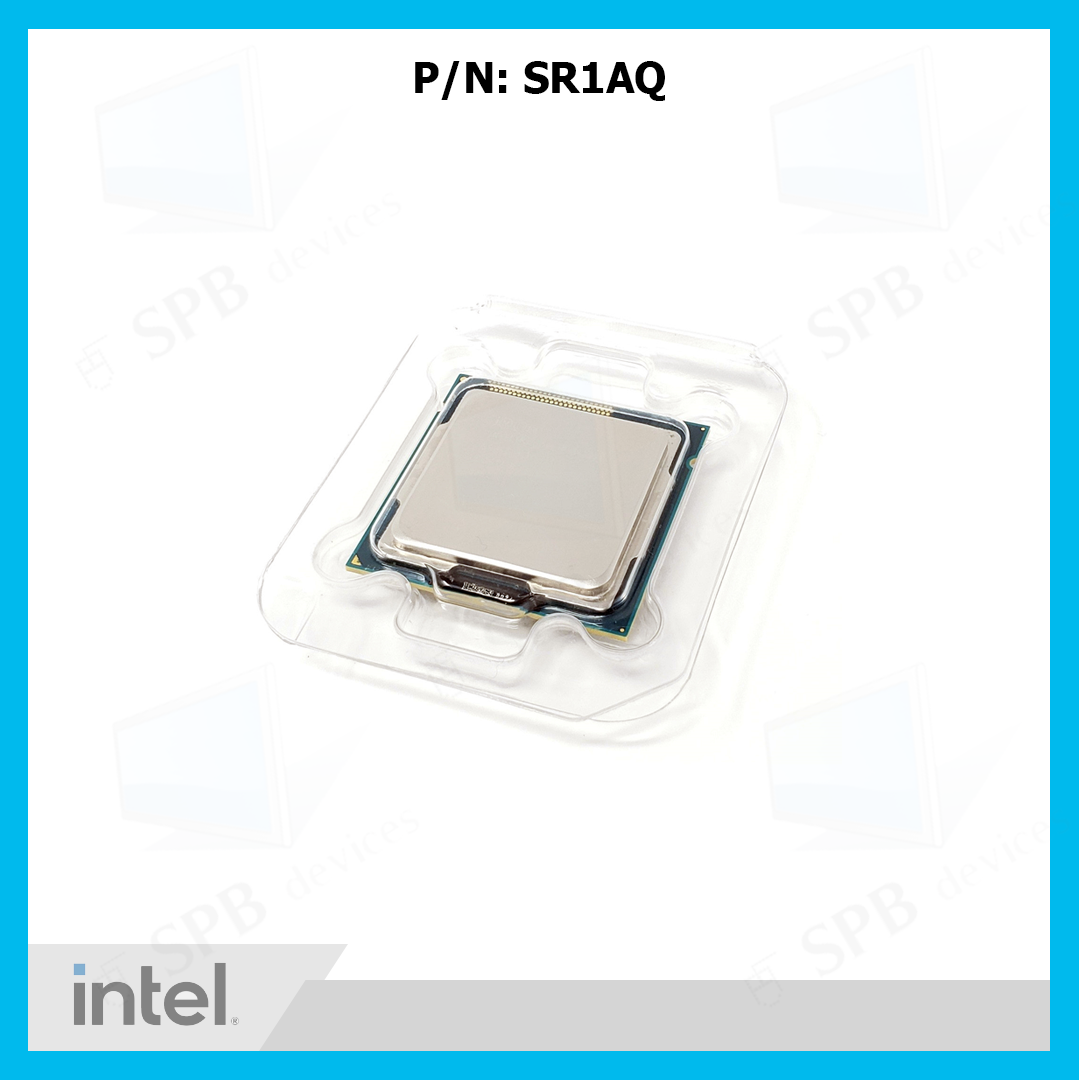

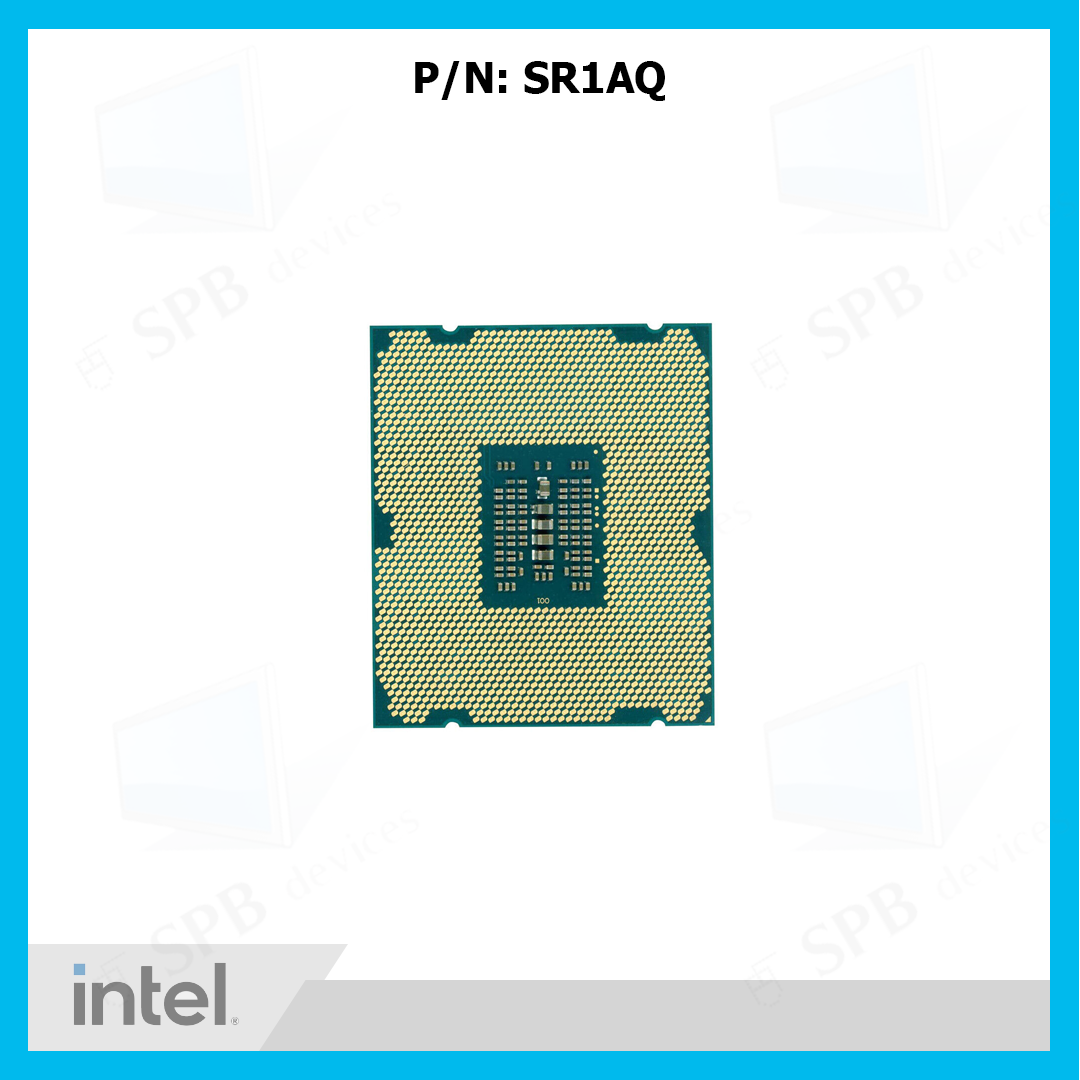

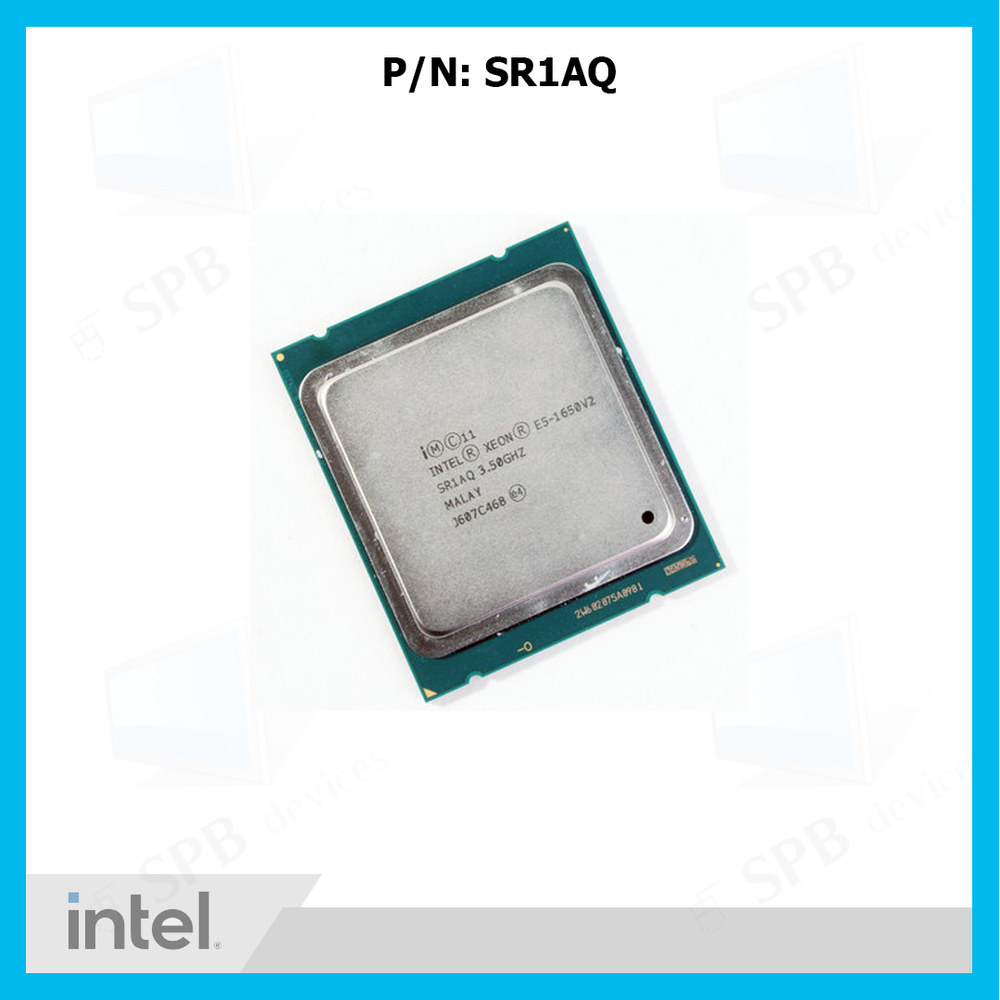

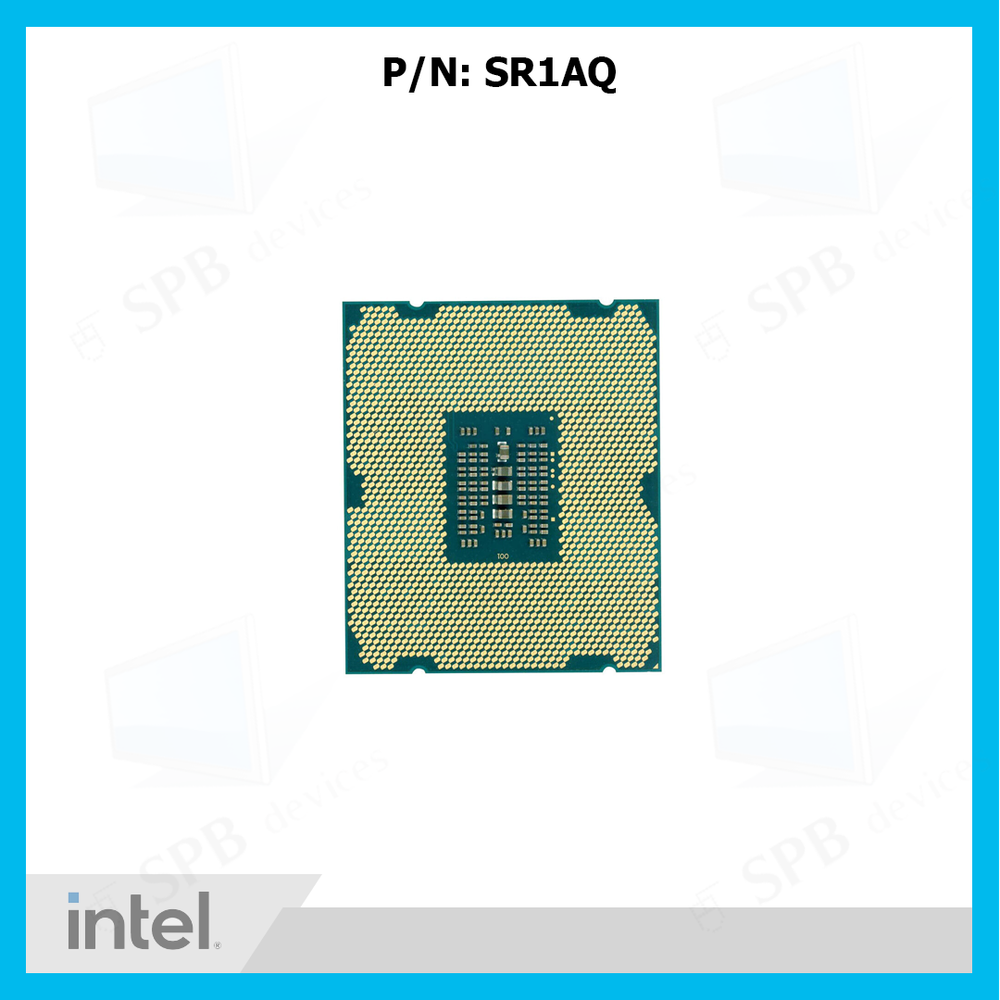

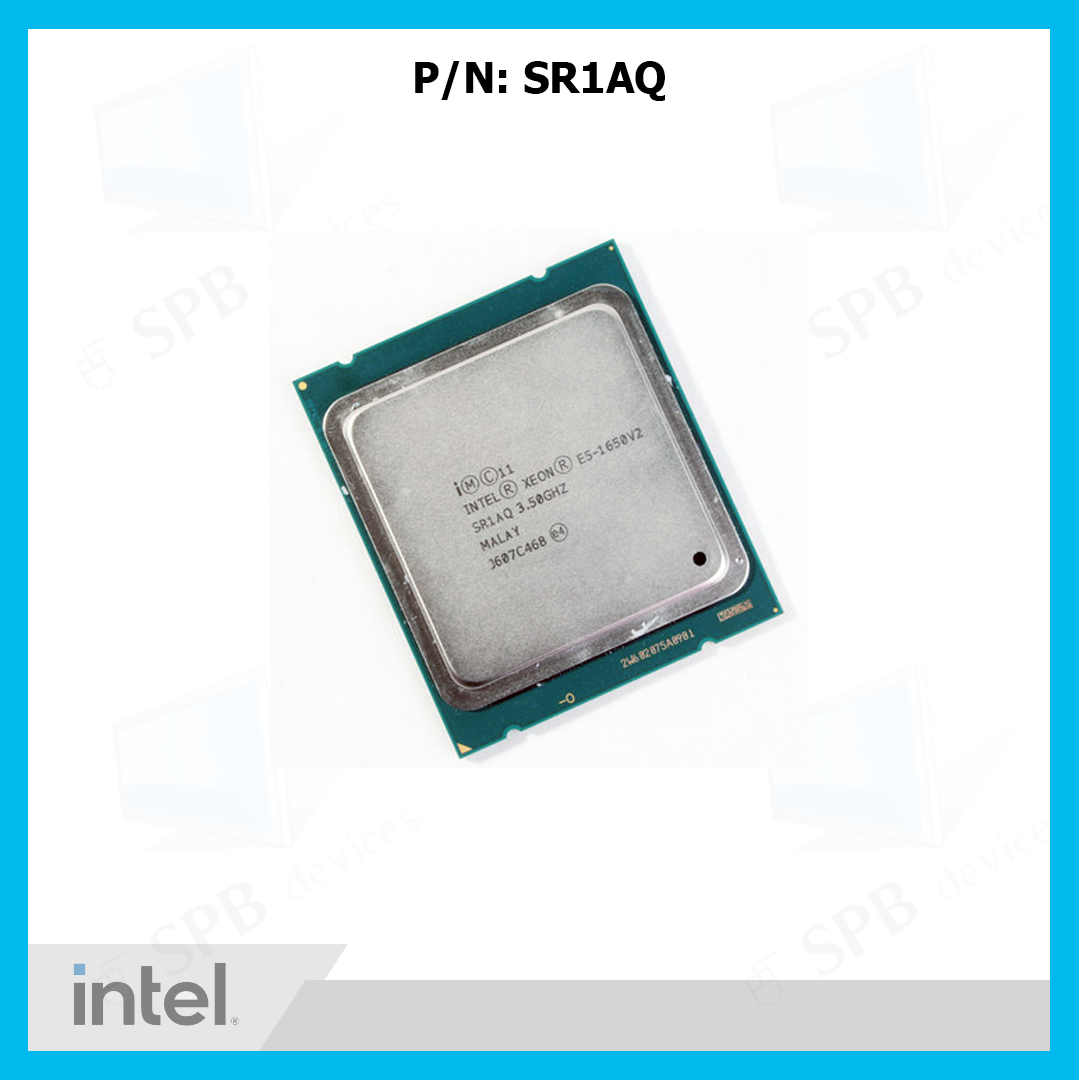

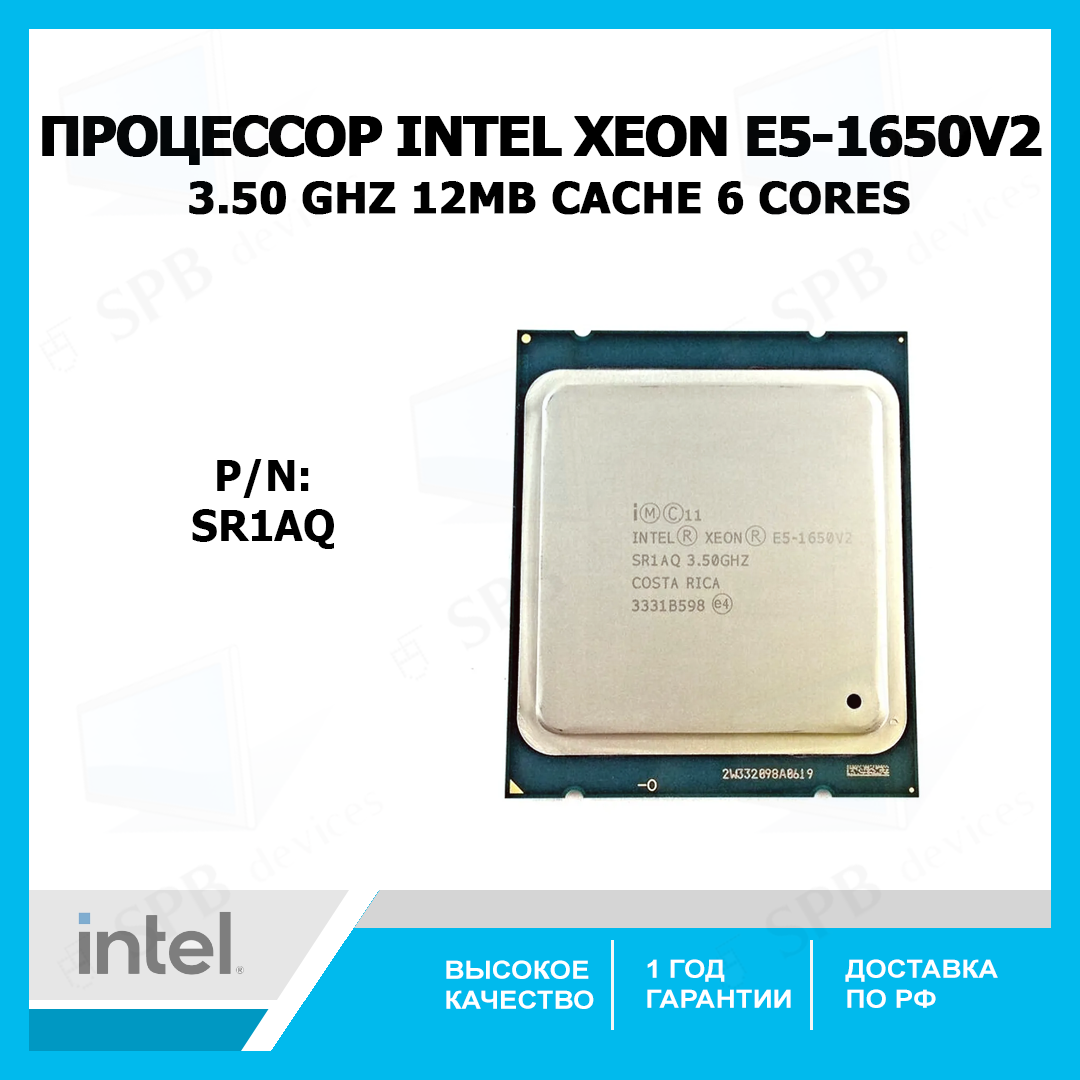

Процессор Intel Xeon E5-1650V2 Ivy Bridge-EP 6 core (3500MHz, LGA2011, L3 12288Kb), SR1AQ - новый , oem
| Intel Xeon Processor E5-1650 v2 (12M Cache, 3.50 GHz) | |
| Essentials | |
| Product Collection | Intel Xeon Processor E5 v2 Family |
| Code Name | Products formerly Ivy Bridge EP |
| Vertical Segment | Server |
| Processor Number | E5-1650V2 |
| Off Roadmap | No |
| Status | Launched |
| Launch Date | Q3'13 |
| Lithography | 22 nm |
| Recommended Customer Price | 583.00 |
| Performance | |
| # of Cores | 6 |
| # of Threads | 12 |
| Processor Base Frequency | 3.50 GHz |
| Max Turbo Frequency | 3.90 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 0 GT/s |
| # of QPI Links | 0 |
| TDP | 130 W |
| VID Voltage Range | 0.65–1.30V |
| Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |
| Additional Information URL | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256 GB |
| Memory Types | DDR3 800/1066/1333/1600/1866 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 59.7 GB/s |
| ECC Memory Supported ‡ | Yes |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | x4, x8, x16 |
| Max # of PCI Express Lanes | 40 |
| Package Specifications | |
| Sockets Supported | FCLGA2011 |
| Max CPU Configuration | 1 |
| TCASE | 70C |
| Package Size | 52.5mm x 45.0 mm |
| Advanced Technologies | |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel AVX |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel® Identity Protection Technology ‡ | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
Важно:
Работаем только со следующими материнскими платами и версиями BIOS в них:
ASRock motherboards
ASRock 2U12L6SW-2TS6 P1.20
ASRock 3U8G-C602 Any
ASRock EP2C602-2L+/D16 P1.20
ASRock EP2C602-2L+2OS6/D16 Any
ASRock EP2C602-2L+OS6/D16 Any
ASRock EP2C602-2T/D16 P1.30
ASRock EP2C602-2T2O/D16 Any
ASRock EP2C602-2TS6/D16 P1.20
ASRock EP2C602-4L/D16 P1.40
ASRock EP2C602-4L P1.40
ASRock EP2C602-S6/D16 Any
ASRock EP2C602D16FM Any
ASRock EP2C602 P1.40
ASRock EPC602D8A Any
ASRock X79 Extreme11 EATX P3.30
ASRock X79 Extreme4 ATX P3.70
ASRock X79 Extreme6 ATX P3.10
ASUS motherboards
ASUS P9X79 DELUXE Any 4502
ASUS P9X79 LE Any 4502
ASUS P9X79 PRO Any 4502
ASUS P9X79 WS Any 4306
ASUS P9X79-E WS Any 1203
ASUS P9X79 Any 4502
ASUS RAMPAGE IV BLACK EDITION Any 0507
ASUS Rampage IV Extreme Any 4502
ASUS Rampage IV Formula Any 4502
ASUS Rampage IV GENE Any 4502
ASUS SABERTOOTH X79 Any 4502
ASUS X79-DELUXE Any 0506
Gigabyte motherboards
Gigabyte G1.Assassin 2 (rev 1.0) EATX 1.0 N/A
Gigabyte GA-X79-UD3 (rev 1.0) 1.0 N/A
Gigabyte GA-X79-UD3 (rev 1.1) 1.1 F16
Gigabyte GA-X79-UD5 (rev 1.0) EATX 1.0 N/A
Gigabyte GA-X79-UD5 (rev 1.1) 1.1 F13w
Gigabyte GA-X79-UD7 (rev 1.0) XL-ATX 1.0 N/A
Gigabyte GA-X79-UP4 (rev 1.0) 1.0 N/A
Gigabyte GA-X79-UP4 (rev 1.1) 1.1 F4
Gigabyte GA-X79S-UP5-WIFI (rev 1.0) 1.0 N/A
Gigabyte GA-X79S-UP5-WIFI (rev 1.1) 1.1 F4
Intel motherboards
Intel S1600JP2
Intel S1600JP4
MSI motherboards
MSI MS-S0221
MSI MS-S1361
Please see Intel Xeon E5-1650 v2 page for detailed specifications and chipset
